📋 Basic Specifications
Max Vacuum Degree(PA)
399.9PA (<3mmhg)
Rotary Speed (Rpm)
20-110
Specification
480*580*535 MM

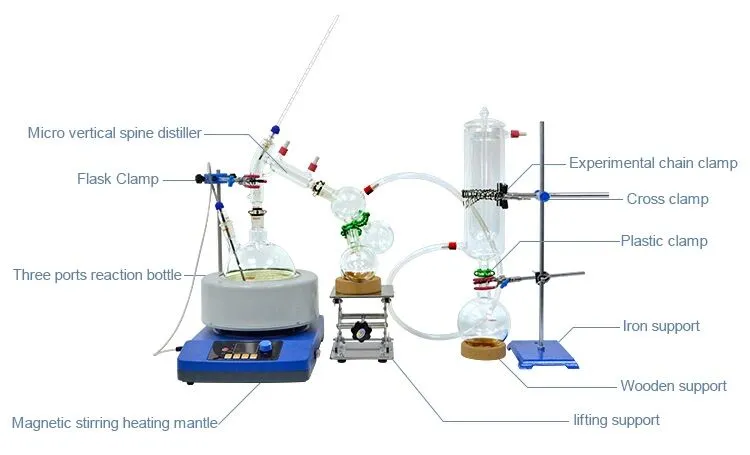

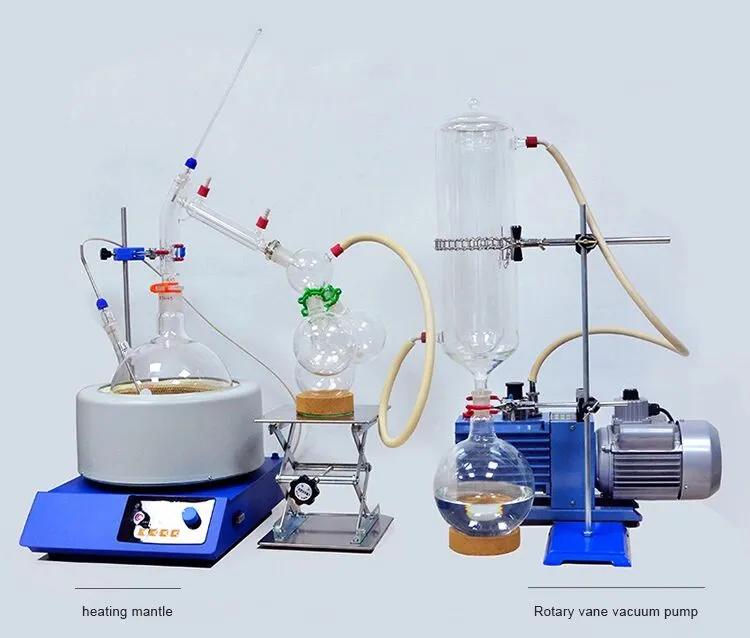

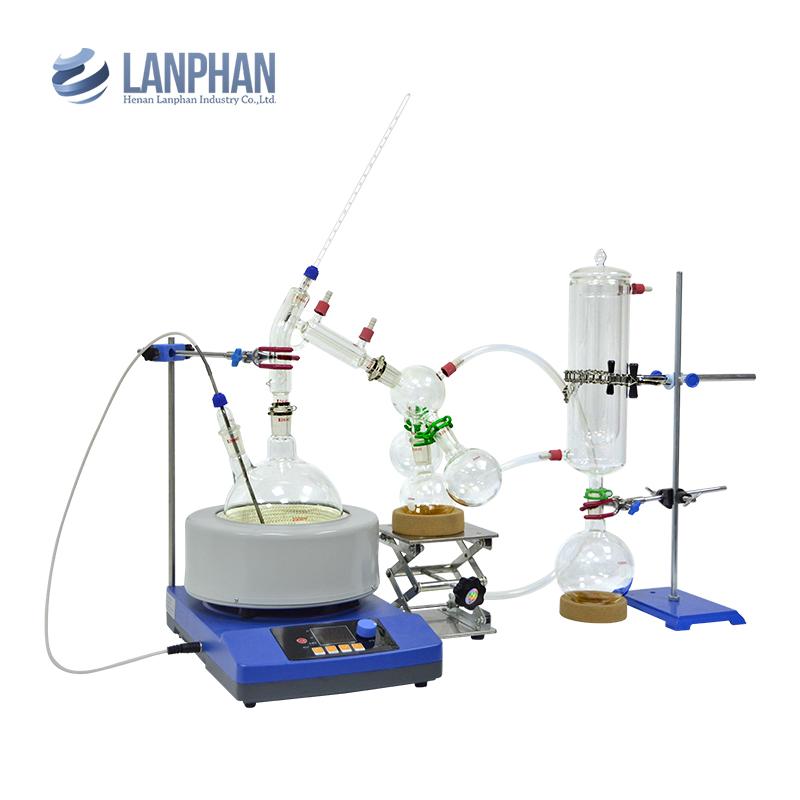

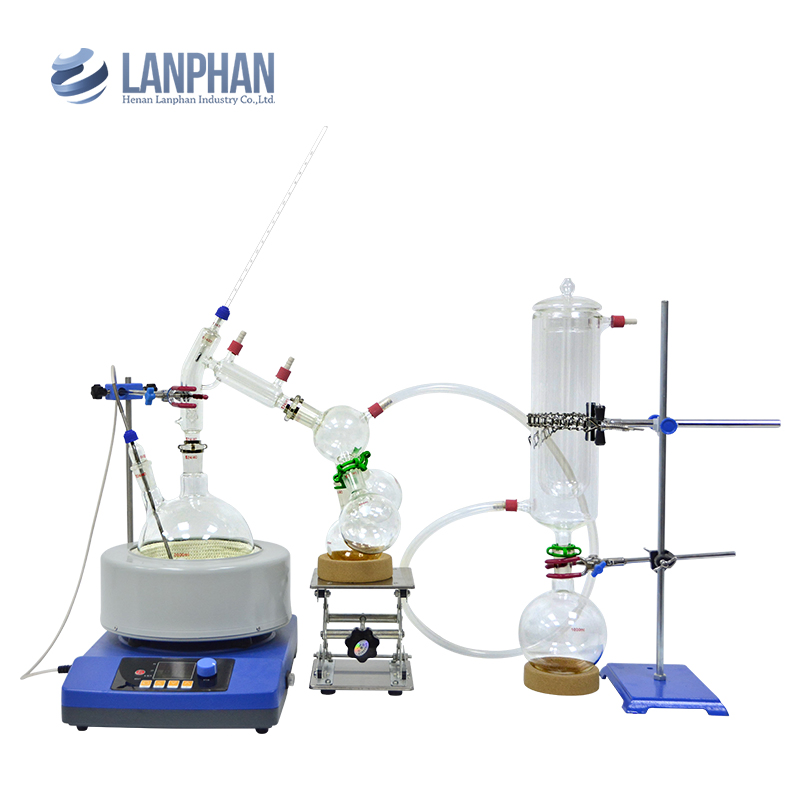

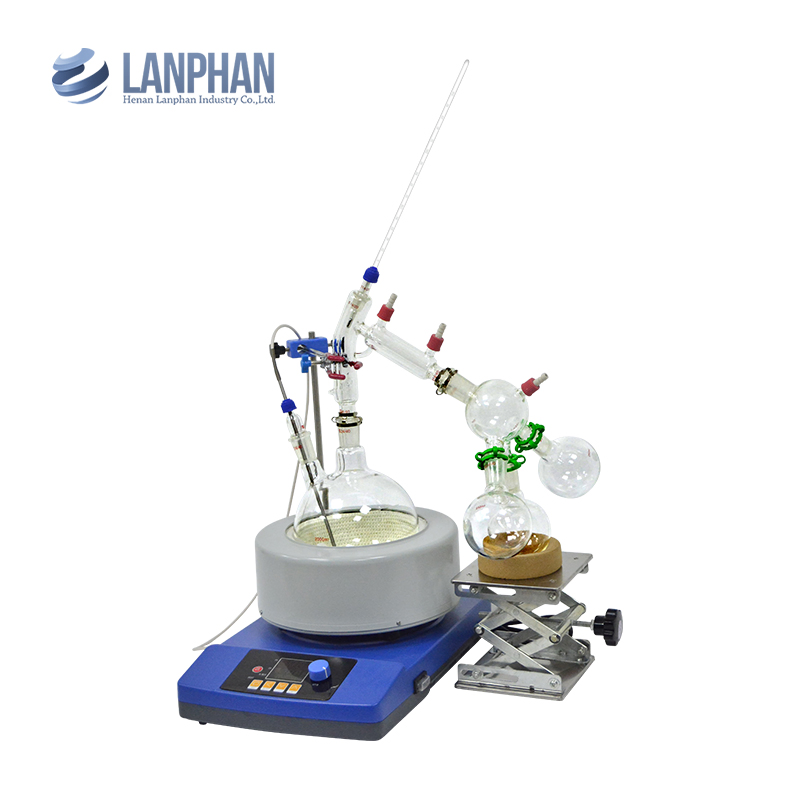

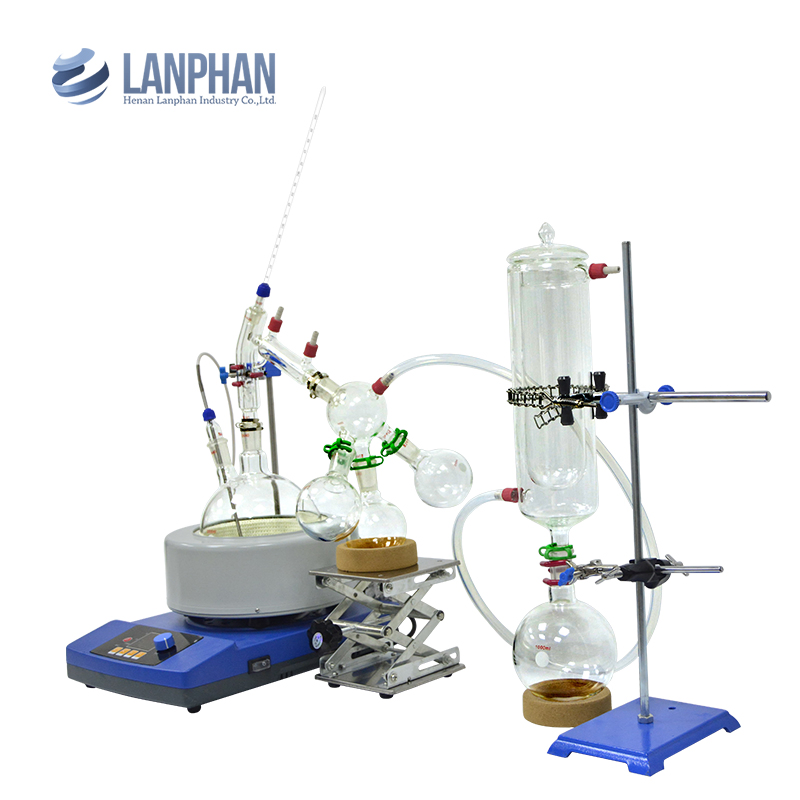

📷 Product Display

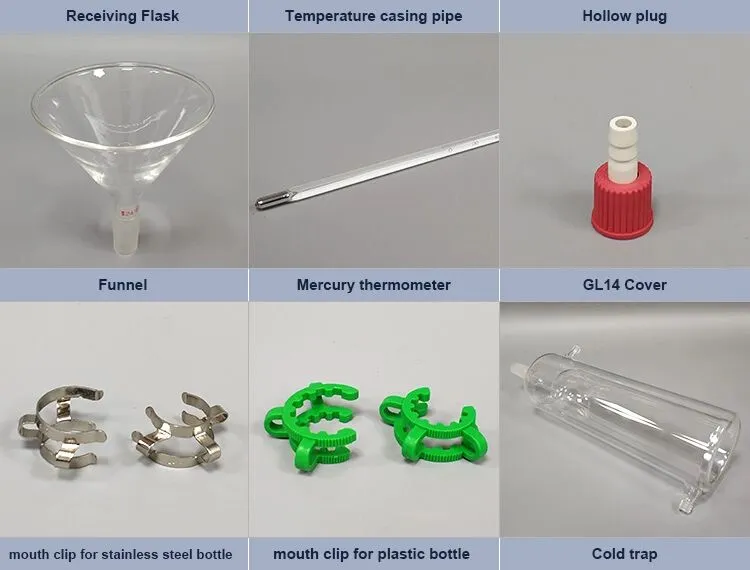

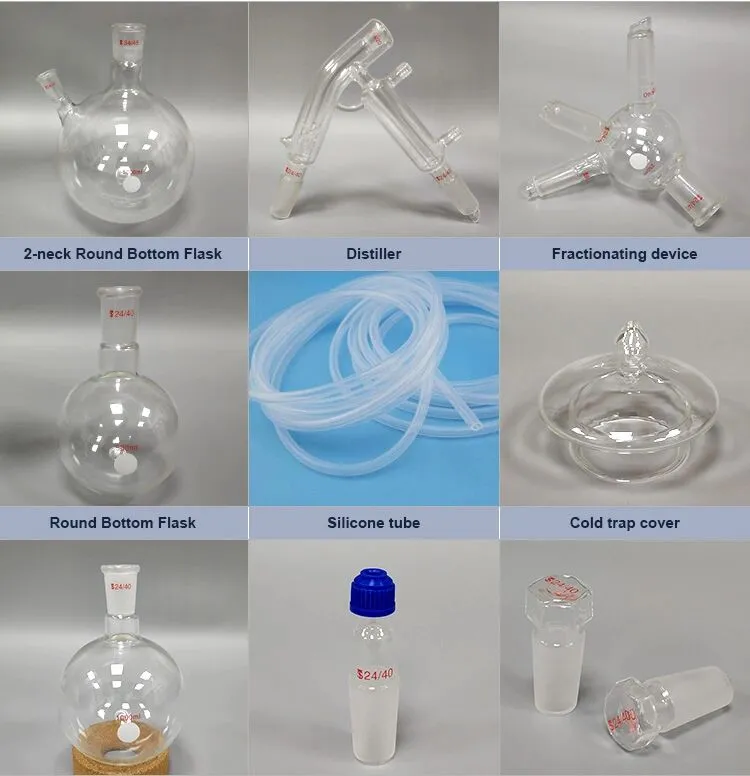

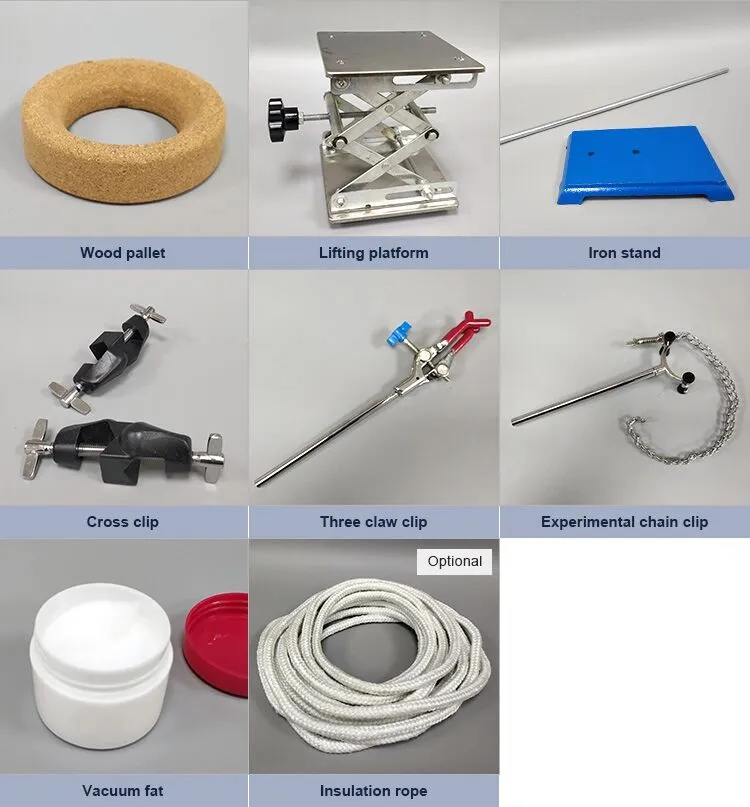

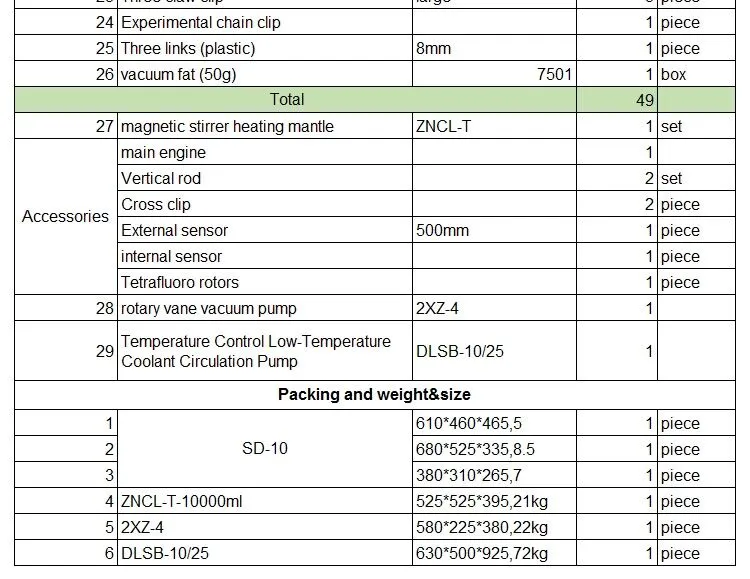

⚙ Parts & Components List
| No. |
Parts Name |
Specification |
Qty |
Unit |
| 1 | 2-neck Round Bottom Flask | 5000ml,34/45,24/40*2 | 1 | piece |
| 2 | Distiller | 34/45,24/40,14/20 | 1 | piece |
| 3 | Fractionating device | 250ml,24/40*4 | 1 | piece |
| 4 | Round Bottom Flask | 500ml,24/40 | 3 | piece |
| 5 | Cold trap | 70*250mm,24/40 | 1 | piece |
| 6 | Cold trap cover | 70mm | 1 | piece |
| 7 | Receiving Flask | 1000ml,24/40 | 1 | piece |
| 8 | Temperature casing pipe | 14/20 | 1 | piece |
| 9 | Temperature casing pipe | 24/40 | 1 | piece |
| 12 | Funnel | 110mm,24/40 | 1 | piece |
| 13 | Mercury thermometer | 0-360ºC | 1 | piece |
| 18 | Silicone tube | 8*14 | 2 | meter |
| 21 | Lifting platform (stainless steel) | 150*150 | 1 | piece |
| 27 | Magnetic stirrer heating mantle | ZNCL-T-5000ml | 1 | set |
| 28 | Rotary vane vacuum pump | 2XZ-2 | 1 | set |
| 29 | Low-Temperature Coolant Pump | DLSB-5/20 | 1 | set |
📊 Technical Parameters

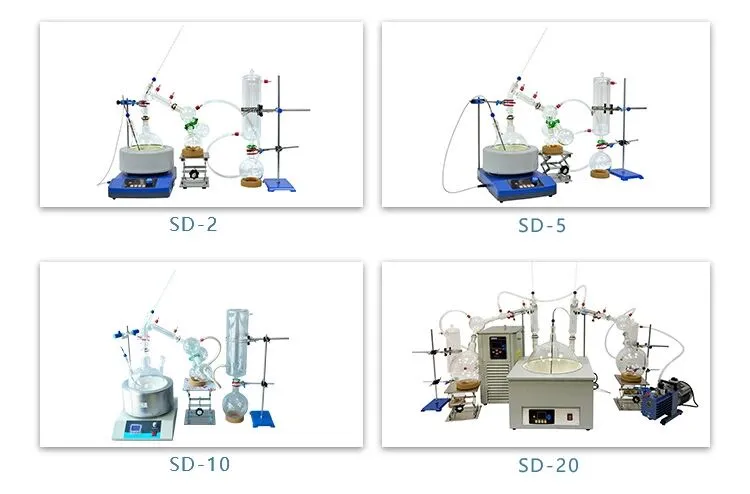

| Short-Path Distillation Comparison |
| Model |
SD-2 |
SD-5 |
SD-10 |
SD-20 |
| Material |
High Borosilicate Glass G3.3 |
| Heating Capacity (ml) |
2000 |
5000 |
10000 |
20000 |
| Heating Temp (ºC) |
Room temperature - 250 |
| Accuracy (ºC) |
±1 |
| Vacuum Degree (Mpa) |
0.098 |
| Voltage |
220V/50Hz or 110V/60Hz |
380V/50Hz |
🏭 Workshop
❓ Frequently Asked Questions
What kind of plug can you supply?
We can supply European standard, American standard, German standard, or customized plugs according to your specific request.
What payment terms do you accept?
We accept T/T, Paypal, Western Union, credit assurance, and letter of credit (L/C).
What is the voltage of this magnetic hotplate stirrer?
The standard options are 110V/60HZ or 220V/50HZ, which can be customized according to your local power requirements.
What material is the glassware made of?
All glassware is made of High Borosilicate Glass G3.3, which features excellent chemical and physical properties.
How is the equipment packaged for shipping?
We use professional export-grade wooden cases or sturdy carton boxes with internal cushioning to ensure the safety of fragile glass components during transit.
Do you provide technical support after purchase?
Yes, we provide lifelong technical guidance and support. We can assist with installation and operational questions via video or online manuals.
