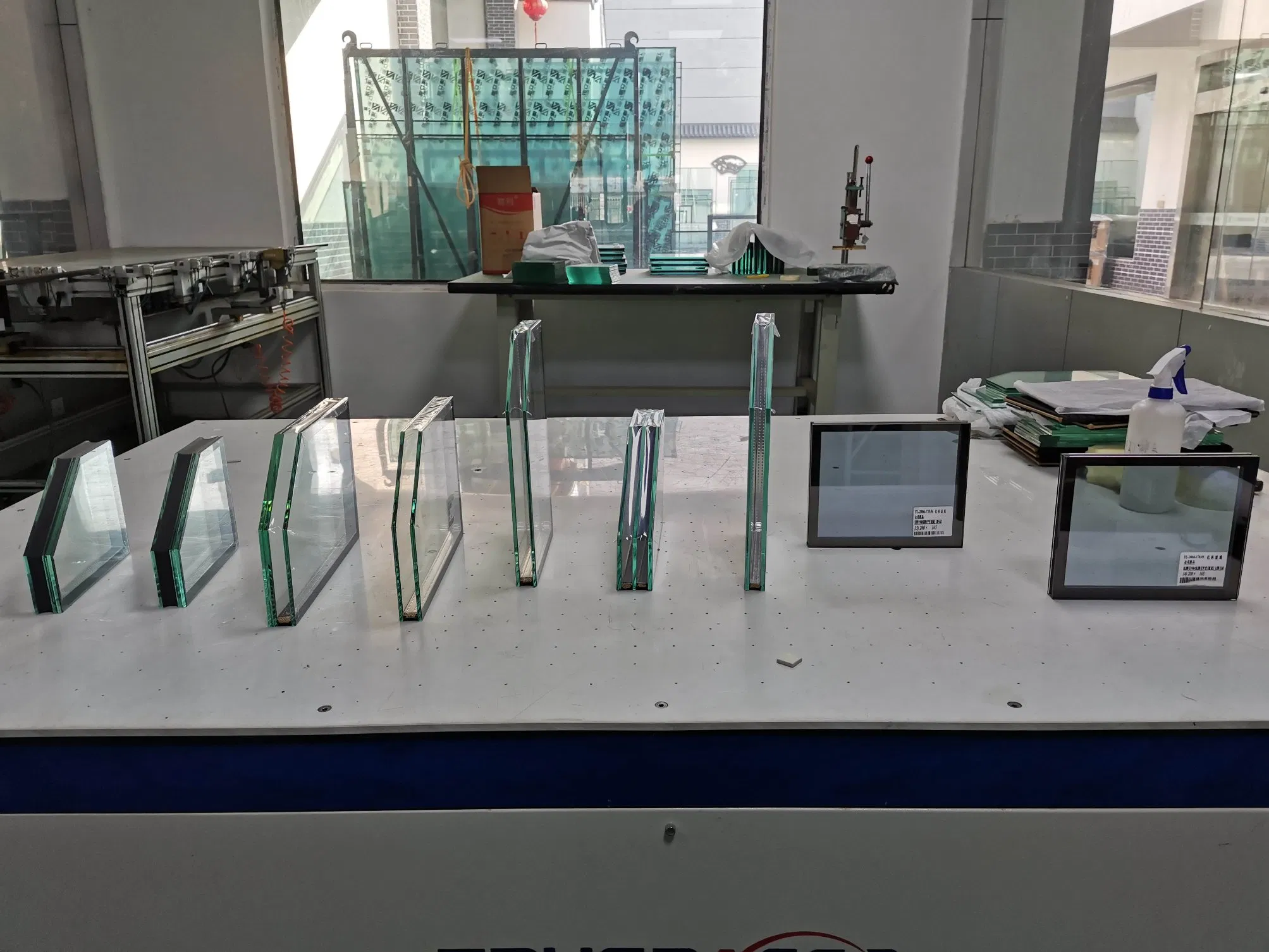

Double Glazed Sample Glass for Show Room

📋

Basic Specifications

Model NO.

in25

Type

Insulated Glass

Shape

Flat

Structure

Hollow

Glass Thickness

15mm-65mm

Air Cavity Depth

6mm, 9mm, 12mm, 15mm, 19mm, 21mm, 25mm

Moh's Hardness

6

Energy Transfer

Low E

Deep Processing

Hollow Glass

Color

Blue, Gray, Green, Brown, Golden

Usage

Door, Building, Window, Curtain, Ice Box Cover

Capability

100 Pieces Per Day

Transport Package

Wooden Case

Specification

min. 100*100 mm

HS Code

70080010

Production Capacity

2000sq. Ms Per Day

🔍

Product Overview

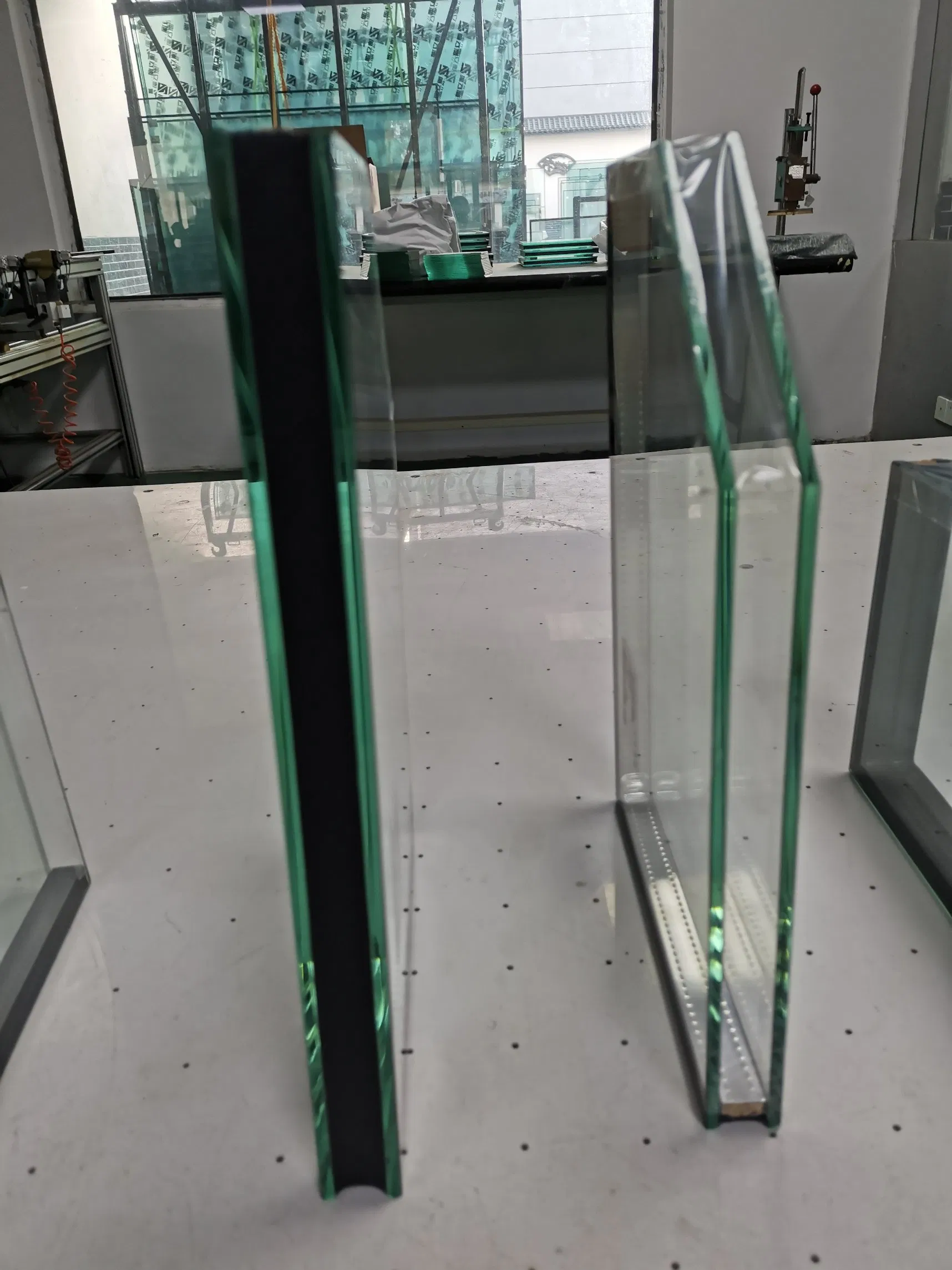

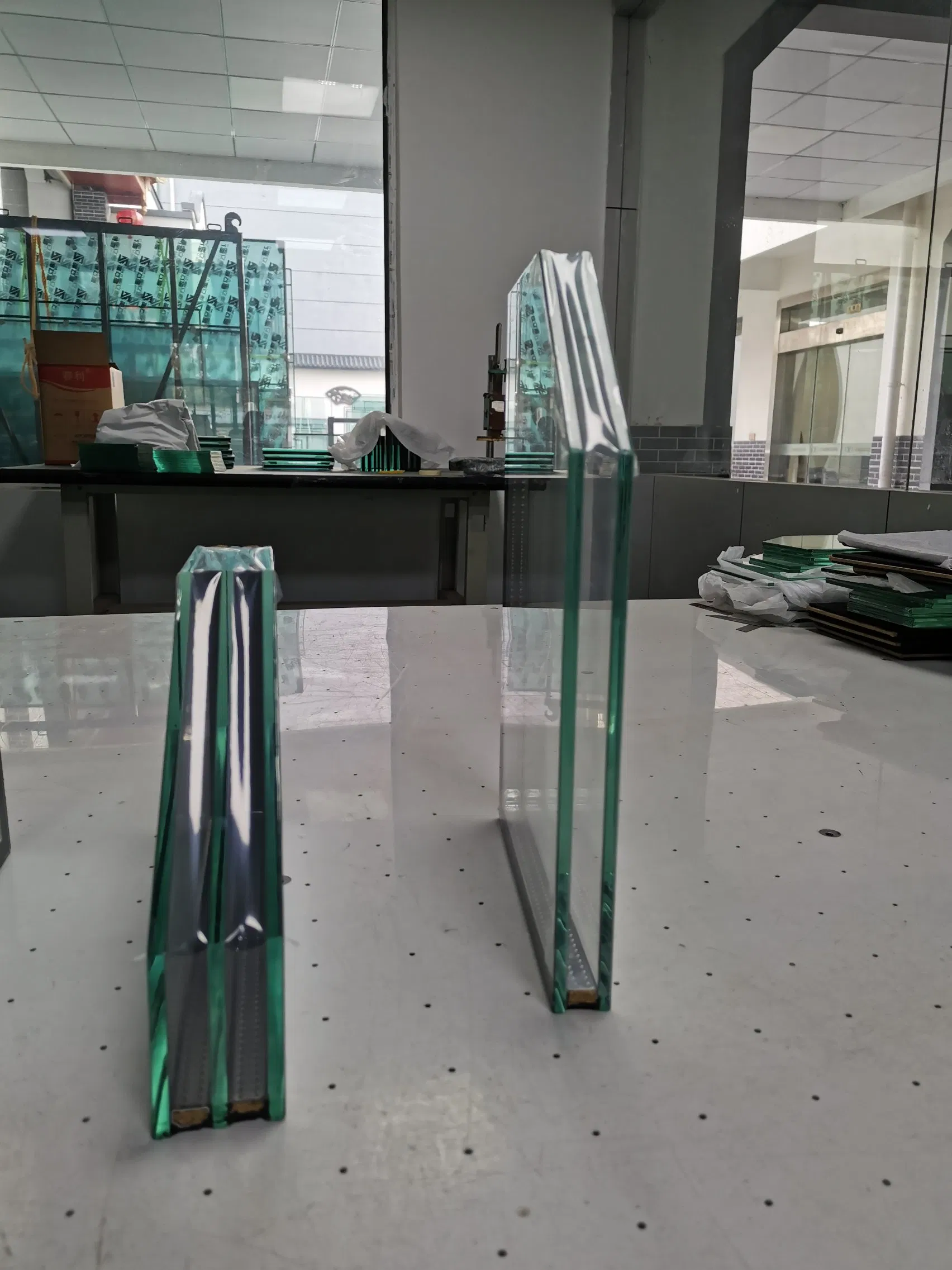

Pane Tempered Glass Sample for Windows and Doors

Our premium insulated glass is manufactured by fusing together 2 panes, half-sealed by high-grade sealant, allowing the structure and materials to be clearly visible. These units are ideal for display in showrooms, exhibitions, or fairs to demonstrate quality to potential buyers.

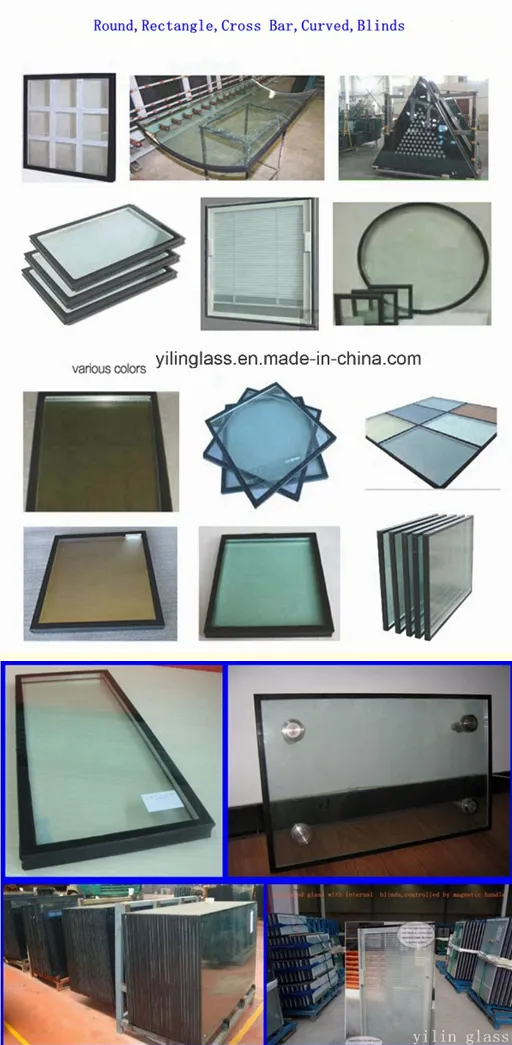

Material Versatility: The unit can consist of normal float glass, ultra clear glass, heat reflective glass, low-E glass, color tinted glass (green, gray, blue, brown, golden, silver), tempered glass, laminated glass, color printed glass, patterned glass, and frosted glass.

Glass Thickness 4mm, 5mm, 6mm, 8mm, 10mm, 12mm

Air Spacer Depth 6mm to 25mm (Aluminum or warm edge spacer)

Size Limits Min: 150x150mm | Max: 3000x300mm (Custom sizes available)

⚙️

Functions & Properties

1. Thermal Insulation Low heat gain and heat loss value (low U value) for energy efficiency.

2. Light Transmission Selectable solar transmission and reflectance levels to meet functional design requirements.

3. Noise Insulation Reduces noise level by 30 dB. An additional 5 dB reduction is achievable with inert gas filling.

4. Condensing Prevention Designed to withstand down to -65°C without condensing, exceeding the national requirement of -40°C.

5. Leak Proof System Dual seal system with PIB as primary seal and silicone or polysulfide as secondary seal. Automatic bending ensures air tightness.

⭐

Our Advantages & Quality Control

1. Premium Raw Materials: We use top-tier glass (Low-E, solar control, tinted) from leading brands. Spacers and sealants are sourced from top-branded molecular agents and dry agents.

2. Advanced Cleaning: We use soft water to clean the glass surface, ensuring extreme clarity and preparing it for deep processing.

3. Automated Production: Most processes are automatically finished by advanced machines and robotic arms, ensuring surface quality from framing to sealing.

4. Strict Inspection: We strictly follow quality control in every procedure, performing 100% piece-by-piece inspection before packing.

5. Timely Delivery: Optimized production lines guarantee orders are delivered on schedule.

🏢

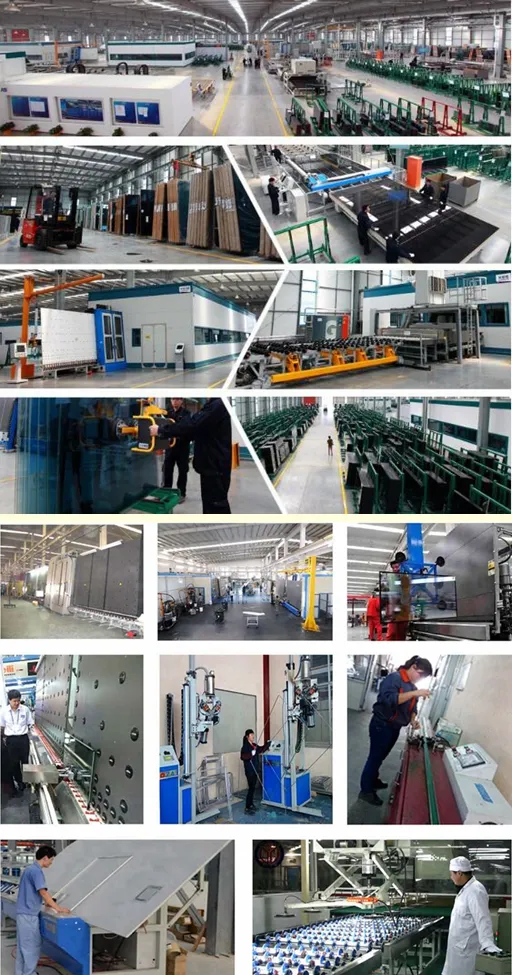

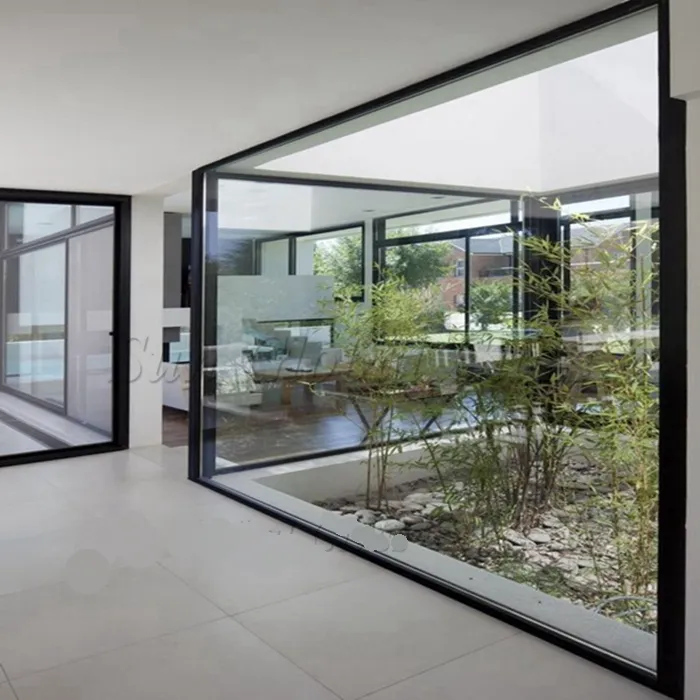

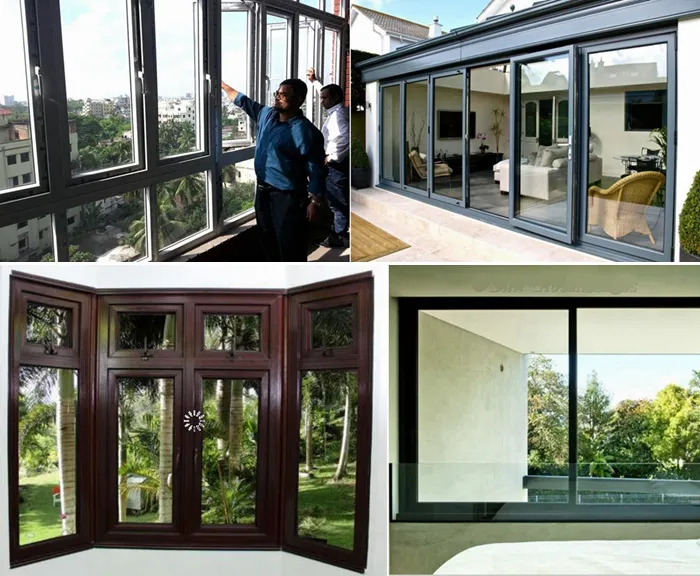

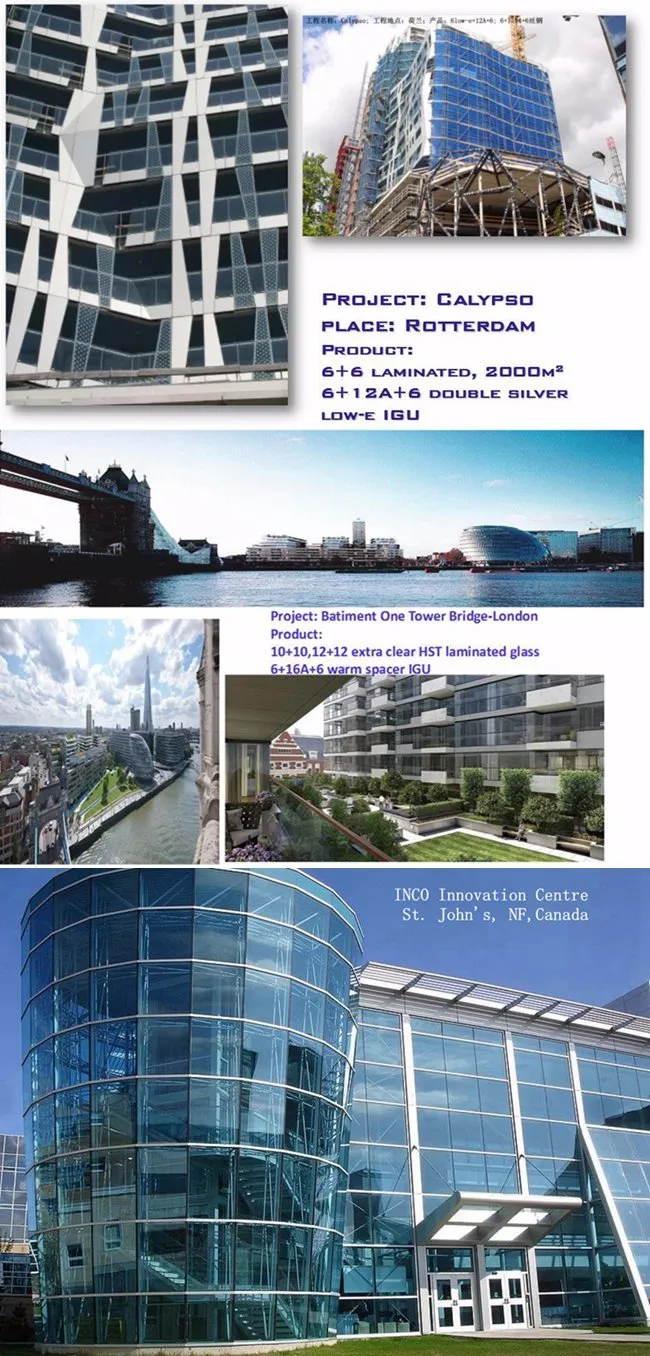

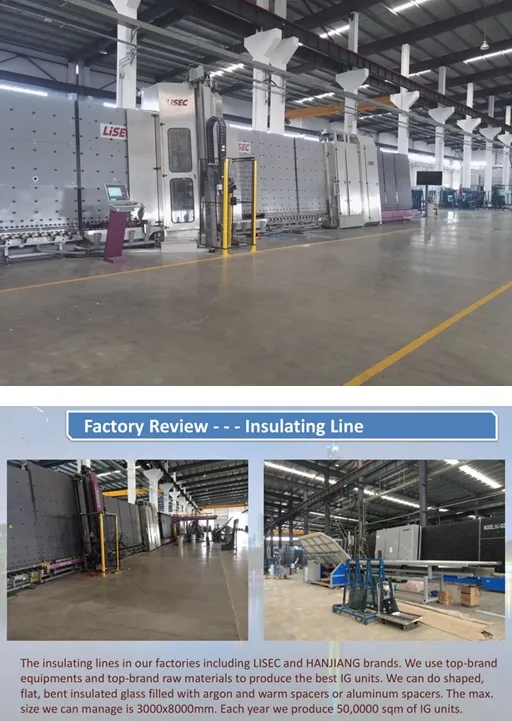

Project Cases & Factory Overview

❓

Frequently Asked Questions

What is the thickness range available for this insulated glass?

The total thickness of our insulated glass units ranges from 15mm up to 65mm, depending on your specific building requirements.

How does your insulated glass prevent condensation?

Our units are designed with a high-performance dual-seal system and quality desiccants, allowing them to withstand temperatures as low as -65°C without any internal condensation.

What kind of noise reduction can I expect?

Our standard insulated glass can reduce noise by approximately 30 dB. If inert gas is filled into the cavity, an additional reduction of 5 dB can be achieved.

What colors and glass types can be used?

We offer a wide variety of colors including blue, gray, green, brown, and golden. Glass types include Low-E, tempered, laminated, frosted, and heat-reflective glass.

Are custom sizes available for order?

Yes, we provide fully customized sizes. The minimum size is 100*100 mm, and we can produce large-scale units for curtain walls and building facades.

What is your daily production capacity?

Our factory has a high production capacity of approximately 2000 square meters per day, which is roughly equivalent to loading one full container daily.
